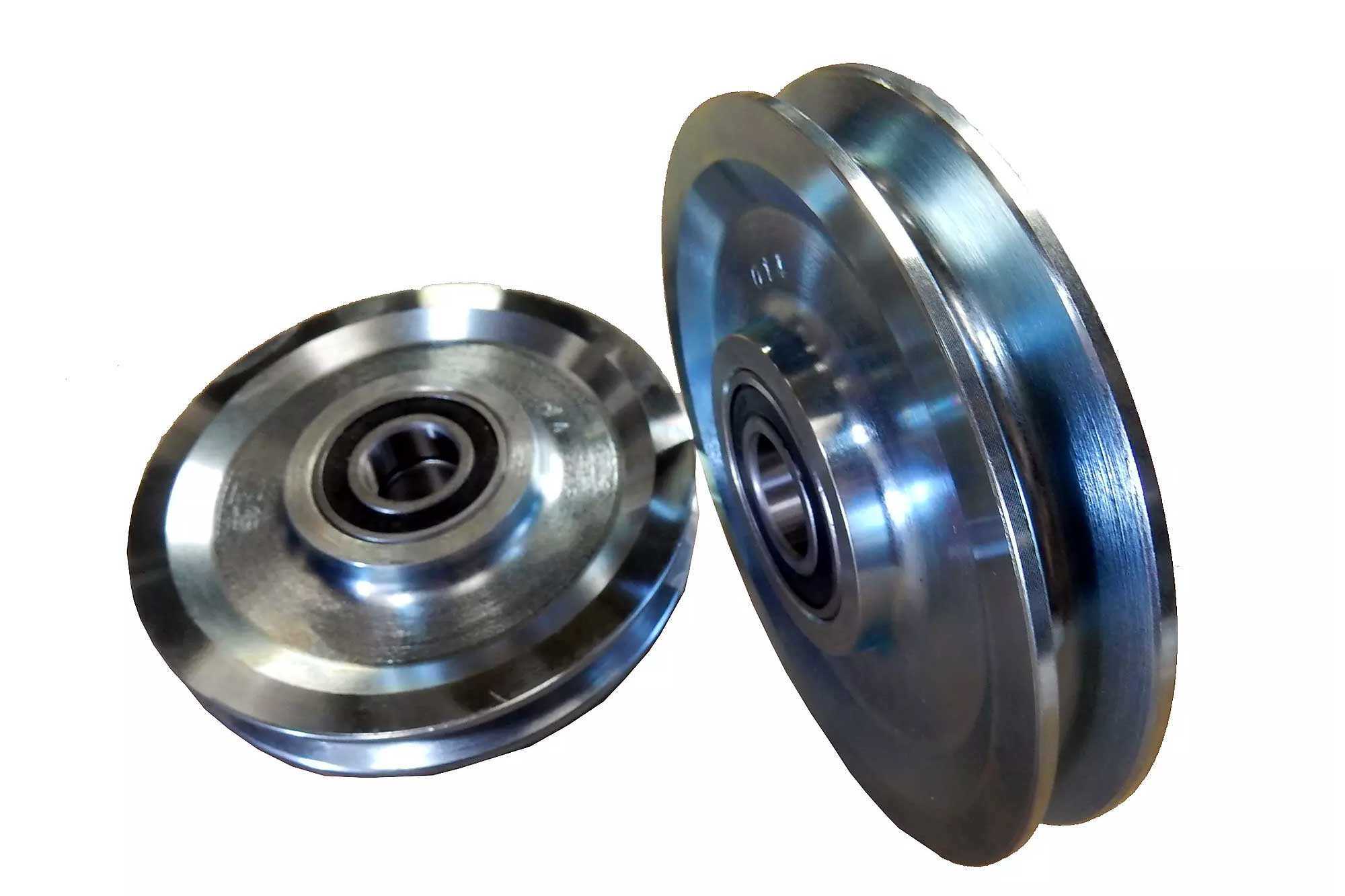

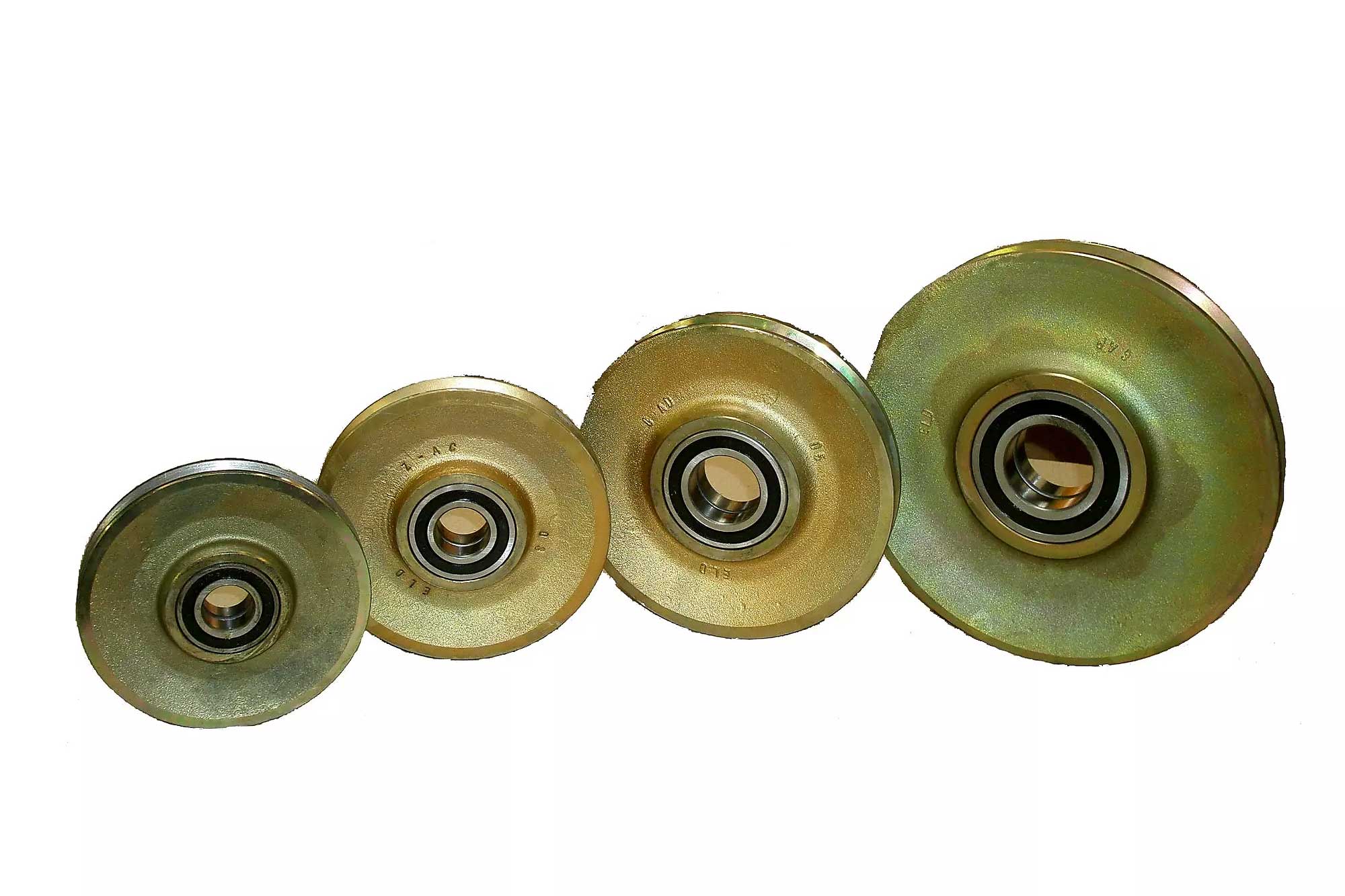

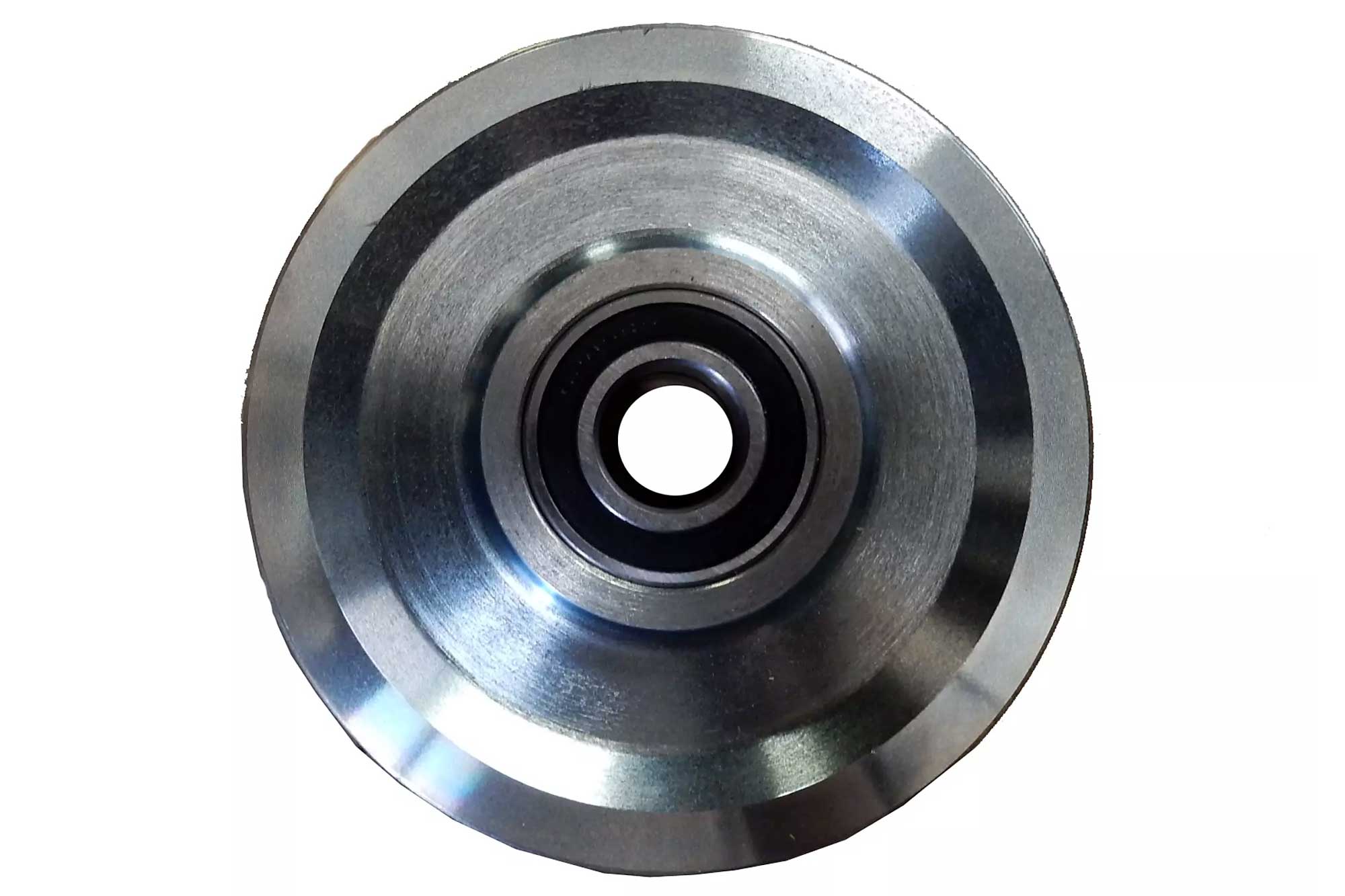

Rulmanlı kasnak
- Elektrogalvanizli
- Diğer boyutlar istek üzerine mevcuttur
- 6200-2RS serisi rulmanlar
- Hammadde, karbon çeliği (C45, A105 veya eşdeğeri)
CSB - Rulmanlı kasnak
| Model | Kasnak Çapı | (Tel/Zincir/Makara) Çap | WLL | Ağırlık (Kg) | Ürün Kodu | Fiyat |
|---|---|---|---|---|---|---|
| CSB012 | 133/150 | 6/7 | 1.6 | 1.75 | 104359 | 143,00 € |
| CSB014 | 125/150 | 7.5/8 | 1.6 | 1.75 | 105639 | 164,00 € |
| CSB022 | 152/175 | 7/8 | 2 | 2.7 | 104389 | 108,00 € |
| CSB024 | 150/178 | 9/10 | 2 | 2.7 | 105649 | 131,00 € |
| CSB032 | 172/200 | 8/9 | 2.5 | 4.1 | 104419 | 129,00 € |
| CSB034 | 165/200 | 10/11 | 2.5 | 4.1 | 105659 | 132,00 € |
| CSB042 | 180/210 | 9/10 | 3.2 | 5.1 | 104449 | 146,00 € |
| CSB044 | 180/210 | 11/12 | 3.2 | 5.1 | 105669 | 166,00 € |
| CSB052 | 200/235 | 10/11 | 4 | 6.9 | 104479 | 190,00 € |
| CSB054 | 195/235 | 12/13 | 4 | 6.9 | 105679 | 212,00 € |
| CSB062 | 228/270 | 11/12 | 6.3 | 10.2 | 104509 | 292,00 € |
| CSB064 | 225/270 | 13/14 | 6.3 | 10.2 | 105689 | 380,00 € |
| CSB072 | 257/297 | 12/13 | 6.3 | 12.3 | 104539 | 338,00 € |
| CSB074 | 257/297 | 14/15 | 6.3 | 12.3 | 105699 | 404,00 € |
| CSB082 | 280/330 | 13/14 | 10 | 21.1 | 104569 | 748,00 € |
| CSB084 | 280/330 | 15/16 | 10 | 23.1 | 105709 | 776,00 € |
| CSB092 | 320/375 | 15/16 | 10 | 24.5 | 104599 | 786,00 € |
| CSB094 | 306/370 | 17/18 | 10 | 24.5 | 105719 | 847,00 € |
| CSB102 | 355/425 | 17/18 | 12.5 | 34 | 104629 | 1.183,00 € |
| CSB104 | 355/425 | 19/20 | 12.5 | 34 | 105729 | 1.281,00 € |
| CSB112 | 400/470 | 19/20 | 16 | 45 | 104659 | 1.896,00 € |
| CSB114 | 400/470 | 22/24 | 16 | 45 | 105739 | 1.822,00 € |
| CSB122 | 440/510 | 20/22 | 20 | 65 | 105759 | 2.215,00 € |
| CSB124 | 430/510 | 24/26 | 20 | 65 | 105779 | 2.216,00 € |
| CSB132 | 500/570 | 22/24 | 20 | 115 | 105799 | 2.902,00 € |
| CSB142 | 550/630 | 24/26 | 25 | 140 | 105829 | 4.272,00 € |
